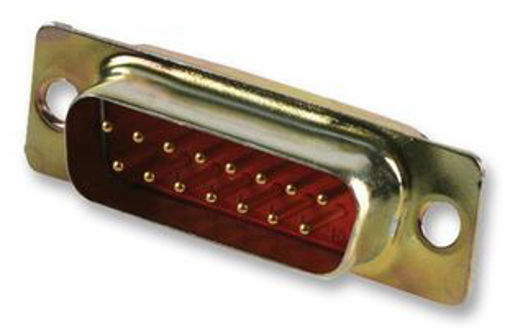

DA15P - Plug, D, 15Way

Plug, D, 15Way; No. Of Contacts:15Contacts; Gender:Plug; Contact Termination Type:Solder Cup; D Sub Shell Size:Da; Product Range:Basic D Series; Connector Body Material:Metal Body; Contact Material:-; Contact Plating:-; Svhc:No Svhc (17-Dec-2015); Approval Bodies:Btd; Body Plating:Zinc; Breakdown Voltage Vbr:2100V; Case Material:Steel, Yellow Passivate Over Zinc Plating; Climatic Category:55/105/21; Connector Mounting:Cable Mount; Contact Resistance:5Mohm; Contact Termination:Solder; Current Temperature:70°C; D Sub Connector Type:Standard; Dc Current Max:6.5A; Flammability Rating:Ul94v-0; Material:Steel; No. Of Mating Cycles:500; Operating Temperature Max:105°C; Operating Temperature Min:-55°C; Termination Method:Solder Bucket; Working Voltage:500V
