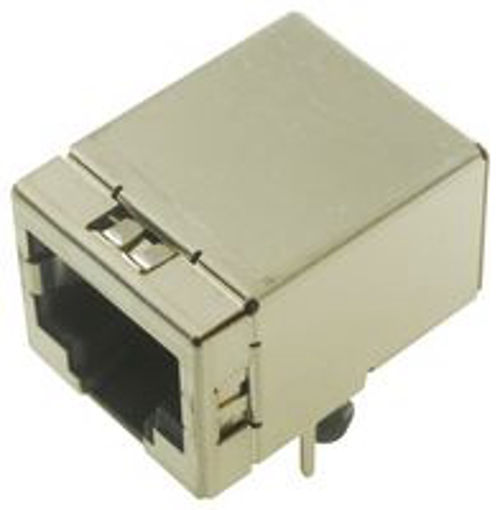

95678-001LF - Socket, Rj45, Shielded, 1Port, 4P

Socket, Rj45, Shielded, 1Port, 4P; Modular Connector Type:Rj45 Jack; Port Configuration:1 X 1 Port; No. Of Positions / Loaded Contacts (Per Port):8P8c; Lan Category:Cat5; Ip Rating:-; Connector Mounting:Through Hole Mount; Connector Orientation:Right Angle; Shielding:Shielded; Magnetics:Without Magnetics; Leds:Without Led; Light Pipes:Without Light Pipe; Product Range:95678 Series; Svhc:No Svhc (15-Jan-2019); Approval Bodies:Csa, Ul; Body Plating:Gold; Colour:Black; Connector Type:Rj45; Contact Material:Phosphor Bronze; Contact Plating:Gold Plated Contacts; Contact Resistance:20Mohm; Contact Termination:Through Hole Right Angle; Contact Termination Type:Through Hole; Current Rating:1A; Dc Current Max:3A; Flammability Rating:Ul94v-0; Gender:Jack; Insulation Resistance:500Mohm; Material:Thermoplastic Resin; No. Of Contacts:8Contacts; No. Of Mating Cycles:250; No. Of Ports:1Ports; No. Of Positions:8Ways; Standard:Eia/Tia 568A; Working Voltage:1Kv
