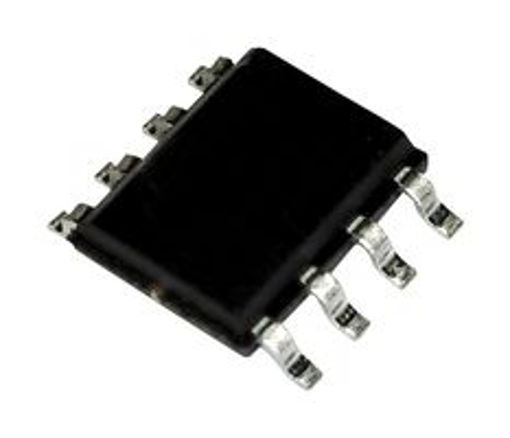

HCNW136-300E - Optocoupler, Smd, Transistor O/P

Optocoupler, Smd, Transistor O/P; No. Of Channels:1 Channel; Optocoupler Case Style:Surface Mount Dip; No. Of Pins:8Pins; Forward Current If Max:25Ma; Isolation Voltage:5Kv; Ctr Min:19%; Collector Emitter Voltage V(Br)Ceo:20V; Product Range:-; Svhc:No Svhc (12-Jan-2017); Approval Bodies:Csa, Din, En, Iec; Approval Category:Ul Recognised; Cmr:1000V/Μs; Current Transfer Ratio Min:15%; Current Transfer Ratio Typ:25%; External Depth:9Mm; External Length / Height:5.1Mm; External Width:11.15Mm; Fall Time Tf:0.2Μs; Forward Current If(Av):16Ma; Input Current:16Ma; Lead Spacing:2.54Mm; No. Of Channels:1Channels; Operating Temperature Max:70°C; Operating Temperature Min:0°C; Operating Temperature Range:0°C To +70°C; Optocoupler Output Type:Phototransistor; Output Voltage:20V; Output Voltage Max:15V; Rise Time:0.6Μs; Row Pitch:11Mm; Voltage Vcc:15V; Withstand Voltage:5000Vac
