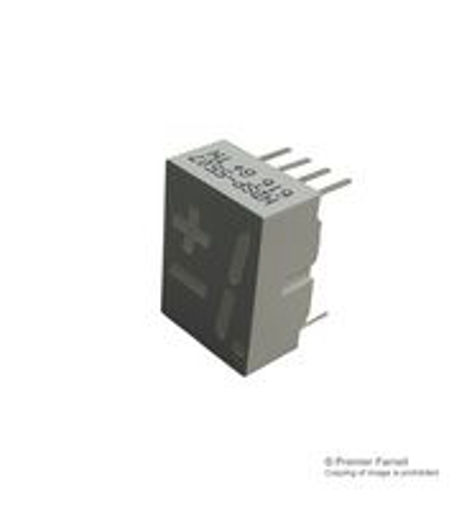

HDSP-5507 - Led Display, 0.56", He-Red

Led Display, 0.56", He-Red; Led Colour:Red; Forward Current If:20Ma; Forward Voltage:2.1V; Luminous Intensity:3.7Mcd; No. Of Digits / Alpha:1; Character Size:14.22Mm; Common Connection:Common Anode; Product Range:-; Svhc:No Svhc (27-Jun-2018); Background Colour:Grey; Character Type:± 1; Current If Luminous Intensity:10Ma; External Depth:8Mm; External Length / Height:17.02Mm; External Width:12.57Mm; Forward Current If Max:20Ma; Forward Voltage Vf Max:2.1V; Forward Voltage Per Segment @ If:2.1V; Lead Spacing:2.54Mm; Luminous Intensity Per Segment @ If Typ:2.8Mcd; Nom Current If Per Segment:20Ma; Operating Temperature Max:100°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C To +100°C; Piv Max:3V; Row Pitch:15.24Mm
