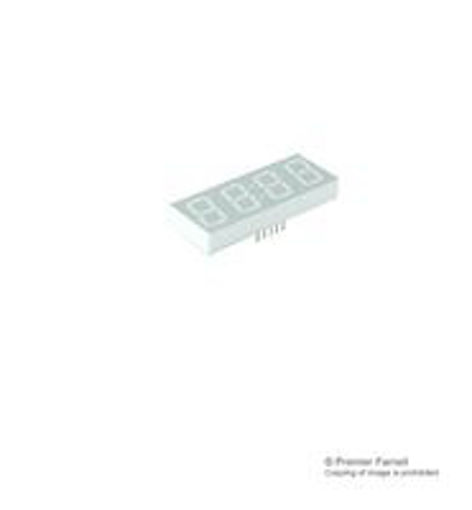

    HDSP-B04E - Led Display, 4-Digit, Red, Ca

    Manufacturer: Broadcom
    Order Code: 1003346
    Manufacturer part number: HDSP-B04E
    Technical Datasheet: HDSP-B04E Datasheet
    Availability: Out of stock
    Legislation and Environmental
    Country of Origin: CN
    RoHS Compliant: YES
    SVHC: 0
    Weight (KG): 0.0100
    Tariff No: 85414010
    0.0 0
    Write your own review Close
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Led Display, 4-Digit, Red, Ca; Led Colour:Red; Forward Current If:20Ma; Forward Voltage:2.05V; Luminous Intensity:5.5Mcd; No. Of Digits / Alpha:4; Character Size:14.22Mm; Common Connection:Common Anode; Product Range:-; Svhc:Hexahydromethylphthalic Anhydride [1], Hexahydro-4-Methylphthalic Anhydride [2], Hexahydro-1-Methylphthalic Anhydride[3] (15-Jan-2018); Background Colour:Grey; Character Type:4 Digit; Current If Luminous Intensity:20Ma; External Depth:8Mm; External Length / Height:51.2Mm; External Width:19.1Mm; Forward Current If Max:20Ma; Forward Voltage Vf Max:2.2V; Forward Voltage Per Segment @ If:2.2V; Lead Spacing:2.54Mm; Luminous Intensity Per Segment @ If Typ:3.2Mcd; Nom Current If Per Segment:20Ma; Operating Temperature Max:105°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C To +105°C; Piv Max:5V; Row Pitch:15.24Mm
