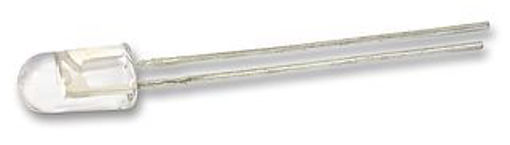

    HLMP-BL06-N0000 - Led, 5Mm, Amber

    Üretici firma: Broadcom
    Sipariş Kodu: 1003182
    Üretici parti numarası: HLMP-BL06-N0000
    Kullanılabilirlik: Stoklar tükendi
    Mevzuat ve Çevre
    Menşe Ülke: MY
    RoHS Uyumlu: YES
    SVHC: 0
    Ağırlık (KG): 0,0310
    Gümrük Tarife No: 85414010
    0.0 0
    Kendi görüşünü yaz Kapat
    *
    *
    • Kötü
    • Mükemmel
    *
    *
    *
    *
    Led, 5Mm, Amber; Led Colour:Amber; Led Mounting:Through Hole; Led Case Size:T-1 3/4 (5Mm); Forward Current If:20Ma; Forward Voltage:2.2V; Wavelength Typ:594Nm; Luminous Intensity:680Mcd; Viewing Angle:70°; Lens Shape:Oval; Product Range:-; Automotive Qualification Standard:-; Msl:-; Svhc:No Svhc (15-Jan-2018); Bulb Size:T-1 3/4 (5Mm); Current If Luminous Intensity:20Ma; Dominant Wavelength:592Nm; External Diameter:5Mm; External Length / Height:8.71Mm; Forward Current If Max:20Ma; Forward Voltage Vf Max:2.15V; Led / Lamp Size:5Mm / T-1 3/4; Led Type:Standard; Lead Cross-Section Depth:0.5Mm; Lead Cross-Section Width:0.5Mm; Lead Length:22.89Mm; Lead Spacing:2.54Mm; Luminous Intensity @ If Max:500Mcd; Luminous Intensity @ If Min:345Mcd; Luminous Intensity Typ:680Mcd; No. Of Pins:2Pins; Operating Temperature Max:100°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C To +100°C; Piv Max:5V; Peak Forward Current:30Ma; Peak Wavelength:592Nm; Viewing Angle X Axis Min:70°
