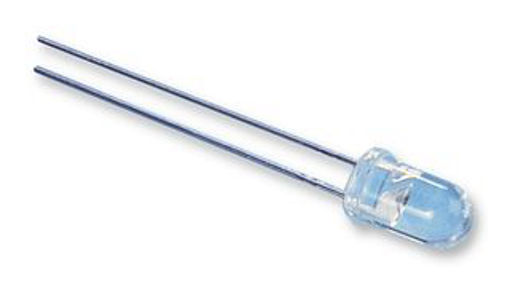

    HLMP-EG30-NR000 - Led, 5Mm, Red

    Manufacturer: Broadcom
    Order Code: 1003152
    Manufacturer part number: HLMP-EG30-NR000
    Technical Datasheet: HLMP-EG30-NR000 Datasheet
    Availability: 7855 in stock

    U.K. Stock

    UK stock products are delivered within 7-10 work days.

    $0.8718 + VAT

    Price for :Each

    i h
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    Price
    1+
    $0.8718
    10+
    $0.4924
    25+
    $0.4365
    50+
    $0.3806
    100+
    $0.3247
    500+
    $0.3188
    Legislation and Environmental
    Country of Origin: MY
    RoHS Compliant: Y10
    SVHC: 0
    Weight (KG): 0.0004
    Tariff No: 85414010
    Products specifications
    LED ColourRed
    LED MountingThrough Hole
    LED Case SizeT-1 3/4 (5mm)
    Forward Current If20mA
    Forward Voltage1.9V
    Wavelength Typ626nm
    Luminous Intensity1.9cd
    Viewing Angle30°
    Lens ShapeRound
    Product Range-
    Automotive Qualification Standard-
    MSL-
    SVHCNo SVHC (27-Jun-2018)
    Bulb SizeT-1 3/4 (5mm)
    Current If Luminous Intensity20mA
    Dominant Wavelength626nm
    External Diameter5mm
    External Length / Height8.71mm
    Forward Current If Max20mA
    Forward Voltage VF Max1.9V
    LED / Lamp Size5mm / T-1 3/4
    LED TypeStandard
    Lead Cross-section Depth0.5mm
    Lead Cross-section Width0.5mm
    Lead Length22.89mm
    Lead Spacing2.54mm
    Luminous Intensity @ If Max2200mcd
    Luminous Intensity @ If Min590mcd
    Luminous Intensity Typ1900mcd
    No. of Pins2Pins
    Operating Temperature Max100°C
    Operating Temperature Min-40°C
    Operating Temperature Range-40°C to +100°C
    PIV Max5V
    Peak Forward Current30mA
    Peak Wavelength626nm
    Voltage Vf Typ1.9V
    0.0 0
    Write your own review Close
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Led, 5Mm, Red; Led Colour:Red; Led Mounting:Through Hole; Led Case Size:T-1 3/4 (5Mm); Forward Current If:20Ma; Forward Voltage:1.9V; Wavelength Typ:626Nm; Luminous Intensity:1.9Cd; Viewing Angle:30°; Lens Shape:Round; Product Range:-; Automotive Qualification Standard:-; Msl:-; Svhc:No Svhc (27-Jun-2018); Bulb Size:T-1 3/4 (5Mm); Current If Luminous Intensity:20Ma; Dominant Wavelength:626Nm; External Diameter:5Mm; External Length / Height:8.71Mm; Forward Current If Max:20Ma; Forward Voltage Vf Max:1.9V; Led / Lamp Size:5Mm / T-1 3/4; Led Type:Standard; Lead Cross-Section Depth:0.5Mm; Lead Cross-Section Width:0.5Mm; Lead Length:22.89Mm; Lead Spacing:2.54Mm; Luminous Intensity @ If Max:2200Mcd; Luminous Intensity @ If Min:590Mcd; Luminous Intensity Typ:1900Mcd; No. Of Pins:2Pins; Operating Temperature Max:100°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C To +100°C; Piv Max:5V; Peak Forward Current:30Ma; Peak Wavelength:626Nm; Voltage Vf Typ:1.9V
