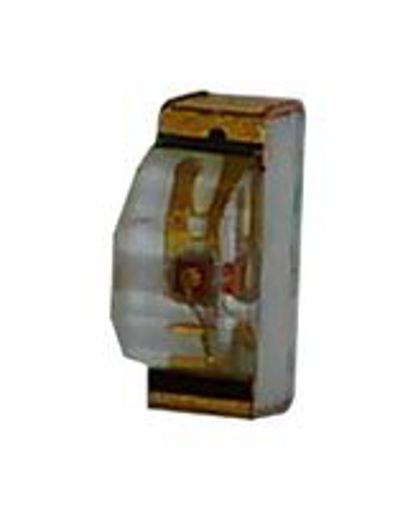

HSMG-C120 - Led, Smd, 0603, R/A, Green

Led, Smd, 0603, R/A, Green; Led Colour:Green; Led Mounting:Smd; Led Case Size:0603; Forward Current If:20Ma; Forward Voltage:2.2V; Wavelength Typ:572Nm; Luminous Intensity:15Mcd; Viewing Angle:155°; Lens Shape:Dome; Product Range:-; Automotive Qualification Standard:-; Msl:Msl 2A - 4 Weeks; Svhc:No Svhc (27-Jun-2018); Bulb Size:1.2Mm; Dominant Wavelength:572Nm; External Depth:0.6Mm; External Length / Height:1Mm; External Width:1.6Mm; Forward Current If Max:20Ma; Forward Voltage Vf Max:2.6V; Led Type:Standard; Luminous Intensity @ If Min:4Mcd; Luminous Intensity Typ:15Mcd; Material:Gap; Mounting Orientation:Right Angle; No. Of Pins:2Pins; Operating Temperature Max:85°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C To +85°C; Peak Forward Current:20Ma; Peak Wavelength:572Nm; Reverse Protection Voltage:5V; Storage Temperature Max:85°C; Storage Temperature Min:-40°C; Voltage Vf Typ:2.2V
