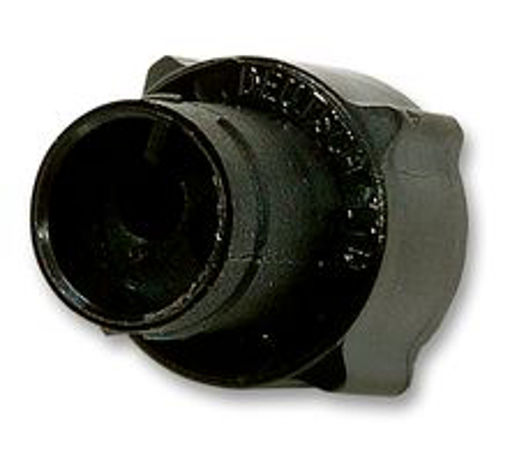

    IMC16-2003X - Plug, In-Line, 3Way

    Sipariş Kodu: 1019227
    Üretici parti numarası: IMC16-2003X
    Teknik Bilgi: IMC16-2003X Datasheet
    Kullanılabilirlik: Stoklar tükendi
    Mevzuat ve Çevre
    Menşe Ülke: GB
    RoHS Uyumlu: Y10
    SVHC: 0
    Ağırlık (KG): 0,0020
    Gümrük Tarife No: 85366990
    0.0 0
    Kendi görüşünü yaz Kapat
    *
    *
    • Kötü
    • Mükemmel
    *
    *
    *
    *
    Plug, In-Line, 3Way; Product Range:Imc 100 Series; Circular Connector Shell Style:Cable Mount Plug; No. Of Contacts:3Contacts; Circular Contact Type:Crimp Pin / Socket - Contacts Not Supplied; Coupling Style:Bayonet; Connector Body Material:Pei (Polyetherimide) Body; Connector Body Plating:-; Contact Material:Copper Alloy; Contact Plating:Gold; Approval Bodies:Csa, Ul, Vde; Body Diameter:15.25Mm; Colour:Black; Connector Mounting:Cable Mount; Connector Shell Size:20; Connector Type:Circular Industrial; Contact Gender:Pin; Current Rating:7.5A; External Length / Height:19Mm; Flammability Rating:Ul94v-0; Gender:Plug; Ip / Nema Rating:Ip67; Insert Arrangement:20-3; Insulation Resistance:1000Mohm; No. Of Positions:3Ways; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Voltage Rating Vac:1000V; Working Voltage:1000V
