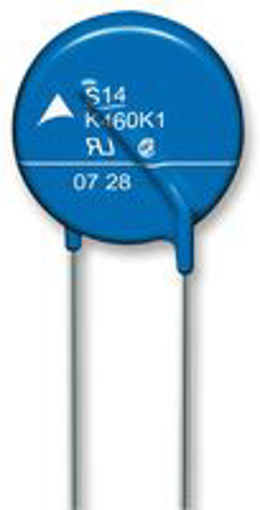

    B72210S0141K101 - Varistor, 22.0J, 140Vac

    Üretici firma: Epcos
    Sipariş Kodu: 1004386
    Üretici parti numarası: B72210S0141K101
    Kullanılabilirlik: 1109 stokta

    U.K. Stock

    İngiltere stoklu ürünler 7-10 iş günü içerisinde teslim edilir.

    €0,4760 +KDV

    Fiyatı :Adet

    i h
    Çok Al, Az Öde, TASARRUF ET!
    Adet
    Fiyat
    1+
    €0,4760
    10+
    €0,3020
    50+
    €0,2700
    100+
    €0,2370
    200+
    €0,1950
    500+
    €0,1790
    2500+
    €0,1630
    Mevzuat ve Çevre
    Menşe Ülke: CN
    RoHS Uyumlu: Y10
    SVHC: 0
    Ağırlık (KG): 0,0012
    Gümrük Tarife No: 85334010
    0.0 0
    Kendi görüşünü yaz Kapat
    *
    *
    • Kötü
    • Mükemmel
    *
    *
    *
    *
    Varistor, 22.0J, 140Vac; Voltage Rating Vac:140V; Voltage Rating V Dc:180V; Product Range:B722 Series; Clamping Voltage Vc Max:360V; Varistor Case Style:Disc 10Mm; Varistor Type:Metal Oxide Varistor (Mov); Peak Surge Current @ 8/20Μs:2.5Ka; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Peak Energy (10/1000Us):22J; Automotive Qualification Standard:-; Svhc:No Svhc (27-Jun-2018); Approval Bodies:Cecc, Csa, Ul; Body Diameter:12.5Mm; Capacitance:370Pf; Clamping Voltage:360V; Clamping Voltage @ 8/20Μs Max:360V; External Depth:0.8Mm; External Length / Height:15Mm; Lead Length:30Mm; Lead Spacing:7.5Mm; Operating Temperature Range:-40°C To +85°C; Peak Pulse Current Ipp @ 8/20Μs:2500A; Suppressor Type:Varistor; Surge Current:2.5Ka; Transient Energy:22J; Varistor Voltage:220V; Varistor Voltage @ 1Ma:198V; Varistor Voltage @ 1Ma Max:242V; Varistor Voltage Tolerance +:10%
