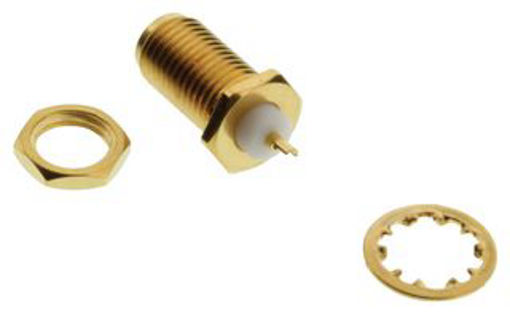

1-1478966-0 - Rf Coaxial, Sma, Straight Jack, 50Ohm

Rf Coaxial, Sma, Straight Jack, 50Ohm; Connector Type:Sma Coaxial; Connector Body Style:Straight Bulkhead Jack; Coaxial Termination:Solder; Impedance:50Ohm; Coaxial Cable Types:-; Contact Material:Beryllium Copper; Contact Plating:Gold Plated Contacts; Frequency Max:18Ghz; Connector Mounting:Panel Mount; Product Range:-; Svhc:No Svhc (15-Jan-2018); Body Plating:Gold; Connector Mounting Orientation:Panel; Contact Resistance:3Mohm; Insulation Resistance:500Mohm; Material:Stainless Steel; No. Of Mating Cycles:500; Operating Frequency Max:18Ghz; Operating Temperature Max:165°C; Operating Temperature Min:-65°C; Termination Method:Solder; Voltage Rating Vac:500V
