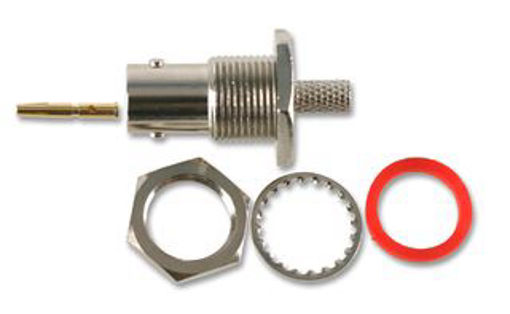

5-1634516-1 - Rf Coaxial, Bnc, Straight Jack, 50Ohm

Rf Coaxial, Bnc, Straight Jack, 50Ohm; Connector Type:Bnc Coaxial; Connector Body Style:Straight Bulkhead Jack; Coaxial Termination:Crimp; Impedance:50Ohm; Coaxial Cable Types:Belden 9907, Kx15, Rg58c/U, Rg141a/U, Urm43, Urm76; Contact Material:Brass; Contact Plating:Gold Plated Contacts; Frequency Max:2Ghz; Connector Mounting:Panel Mount; Product Range:-; Svhc:No Svhc (15-Jan-2019); Body Plating:Nickel; Coaxial Type:Rg58; Connector Mounting Orientation:Bulkhead; Contact Resistance:1.5Mohm; Insulation Resistance:5000Mohm; No. Of Mating Cycles:50; Operating Frequency Max:2Ghz; Operating Temperature Max:+85°C; Operating Temperature Min:-55°C; Plug Body Material:Zinc; Termination Method:Crimp; Withstand Voltage:1500V; Working Voltage:500V
