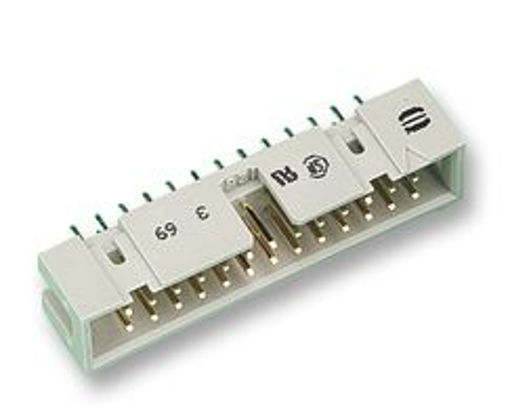

09 18 534 7324 - Header, Straight, 34Way

Header, Straight, 34Way; Pitch Spacing:2.54Mm; No. Of Contacts:34Contacts; Gender:Header; Product Range:Sek 18 Series; Contact Termination Type:Through Hole; No. Of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact Material:Brass; Svhc:No Svhc (15-Jan-2018); Approval Bodies:Bs, Bt, Din, F, Mil Spec, Nfc; Colour:Grey; Contact Resistance:20Mohm; Current Rating:1A; Current Temperature:60°C; Cut Thickness For Pcbs Max:2.4Mm; Flammability Rating:Ul94v-0; Insulation Resistance:1Gohm; No. Of Mating Cycles:100; Operating Temperature Max:105°C; Operating Temperature Min:-40°C; Pcb Hole Diameter:0.9Mm; Voltage Rating V Dc:350V; Voltage Rating Vac:350V; Withstand Voltage:1050V; Working Voltage:350V
