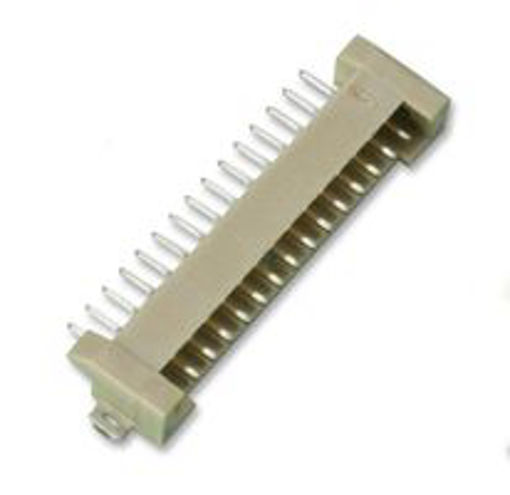

IL-Z-15PL-SMTYE - HEADER, RIGHT ANGLE, SMT, 15WAY

HEADER, RIGHT ANGLE, SMT, 15WAY; Pitch Spacing:1.25mm; No. of Contacts:15Contacts; Gender:Header; Product Range:-; Contact Termination Type:Surface Mount; No. of Rows:1Rows; Contact Plating:Tin Plated Contacts; Contact Material:Brass; Contact Resistance:20mohm; Current Rating:1A; Dielectric Strength:500V/m; Flammability Rating:UL94V-0; Insulation Resistance:100Mohm; Operating Temperature Max:70°C; Operating Temperature Min:-40°C; Panel Thickness Max:1.2mm; Panel Thickness Min:0.6mm; Voltage Rating VAC:500V; Wire Size AWG Max:28AWG; Wire Size AWG Min:32AWG; Withstand Voltage:500V; Working Voltage:500V
