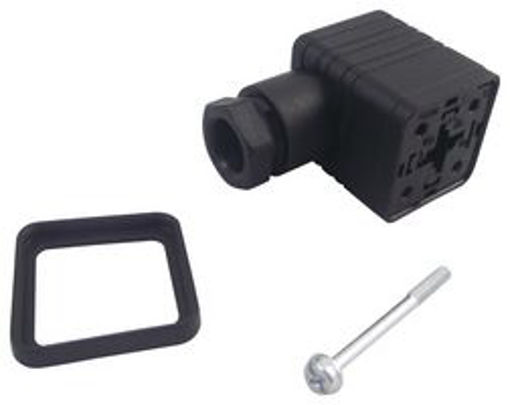

GDM 2009.BLACK - Rectangular, Receptacle, 2+E Way, Screw

Üretici firma: Hirschmann
Sipariş Kodu: 1176452
Üretici parti numarası: GDM 2009.BLACK
Kullanılabilirlik: Stoklar tükendi
Mevzuat ve Çevre
Menşe Ülke: DE
RoHS Uyumlu: Y10
SVHC: 0
Ağırlık (KG): 0,0300
Gümrük Tarife No: 85366990
Ürün özellikleri
No. of Contacts2Contacts
Product Range-
Connector MountingCable Mount
Contact Termination TypeScrew
Pitch Spacing-
GenderReceptacle
Contact GenderSocket
Contact MaterialBrass
Contact PlatingTin Plated Contacts
Connector Shell Size-
No. of Rows-
SVHCLead (27-Jun-2018)
Approval BodiesCSA, SEV, VDE
Cable Diameter Max7mm
Cable Diameter Min4.5mm
ColourBlack
Connector TypeRectangular Power
Contact Resistance4mohm
Contact TerminationScrew
Current Rating16A
External Depth34mm
External Length / Height50mm
IP / NEMA RatingIP65
MaterialPolyamide
Operating Temperature Max125°C
Operating Temperature Min-40°C
StandardDIN EN 175 301-803-A
Thread TypePG9
Working Voltage250V
Rectangular, Receptacle, 2+E Way, Screw; No. Of Contacts:2Contacts; Product Range:-; Connector Mounting:Cable Mount; Contact Termination Type:Screw; Pitch Spacing:-; Gender:Receptacle; Contact Gender:Socket; Contact Material:Brass; Contact Plating:Tin Plated Contacts; Connector Shell Size:-; No. Of Rows:-; Svhc:Lead (27-Jun-2018); Approval Bodies:Csa, Sev, Vde; Cable Diameter Max:7Mm; Cable Diameter Min:4.5Mm; Colour:Black; Connector Type:Rectangular Power; Contact Resistance:4Mohm; Contact Termination:Screw; Current Rating:16A; External Depth:34Mm; External Length / Height:50Mm; Ip / Nema Rating:Ip65; Material:Polyamide; Operating Temperature Max:125°C; Operating Temperature Min:-40°C; Standard:Din En 175 301-803-A; Thread Type:Pg9; Working Voltage:250V
