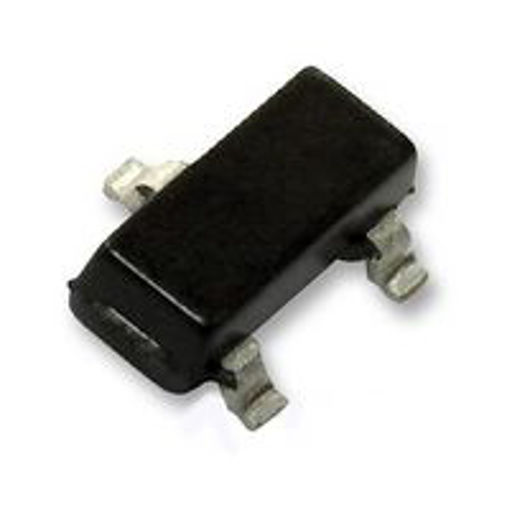

    BSS123LT1G - MOSFET, N, SOT-23

    Manufacturer: On Semiconductor
    Order Code: 9558640
    Manufacturer part number: BSS123LT1G
    Technical Datasheet: BSS123LT1G Datasheet
    Availability: 51081 in stock

    U.K. Stock

    UK stock products are delivered within 7-10 work days.

    $0.2981 + VAT

    Price for :Each (Supplied on Cut Tape)

    This product has a minimum quantity of 5
    i h
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    Price
    5+
    $0.2981
    10+
    $0.2020
    100+
    $0.0499
    3000+
    $0.0397
    9000+
    $0.0332
    24000+
    $0.0320
    45000+
    $0.0294
    Legislation and Environmental
    Country of Origin: VN
    RoHS Compliant: Y10
    SVHC: 0
    Weight (KG): 0.0004
    Tariff No: 85412900
    Products specifications
    Transistor PolarityN Channel
    Continuous Drain Current Id170mA
    Drain Source Voltage Vds100V
    On Resistance Rds(on)6ohm
    Threshold Voltage Vgs800mV
    Power Dissipation Pd225mW
    Transistor Case StyleSOT-23
    No. of Pins3Pins
    Operating Temperature Max150°C
    Product Range-
    Automotive Qualification Standard-
    MSLMSL 1 - Unlimited
    SVHCNo SVHC (27-Jun-2018)
    Current Id Max170mA
    Current Temperature25°C
    External Depth2.5mm
    External Length / Height1.12mm
    External Width3.05mm
    Full Power Rating Temperature25°C
    No. of Transistors1
    Operating Temperature Min-55°C
    Operating Temperature Range-55°C to +150°C
    Pulse Current Idm680mA
    Tape Width8mm
    Voltage Vds Typ100V
    Voltage Vgs Rds on Measurement10V
    0.0 0
    Write your own review Close
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    MOSFET, N, SOT-23; Transistor Polarity:N Channel; Continuous Drain Current Id:170mA; Drain Source Voltage Vds:100V; On Resistance Rds(on):6ohm; Rds(on) Test Voltage Vgs:10VDC; Threshold Voltage Vgs:800mV; Power Dissipation Pd:225mW; Transistor Case Style:SOT-23; No. of Pins:3Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (27-Jun-2018); Current Id Max:170mA; Current Temperature:25°C; External Depth:2.5mm; External Length / Height:1.12mm; External Width:3.05mm; Full Power Rating Temperature:25°C; No. of Transistors:1; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +150°C; Pulse Current Idm:680mA; SMD Marking:SA; Tape Width:8mm; Voltage Vds Typ:100V; Voltage Vgs Max:20VDC; Voltage Vgs Rds on Measurement:10V; Voltage Vgs th Max:2.8V
