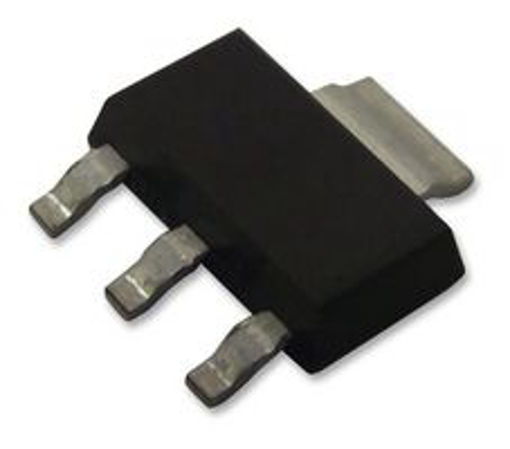

    NDT2955 - MOSFET, P CH,-60V,-2.5A, SOT-223

    Üretici firma: On Semiconductor
    Sipariş Kodu: 9846271RL
    Üretici parti numarası: NDT2955
    Kullanılabilirlik: Stoklar tükendi
    Mevzuat ve Çevre
    Menşe Ülke: US
    RoHS Uyumlu: YX10
    SVHC: 0
    Ağırlık (KG): 0,0002
    Gümrük Tarife No: 85412900
    Ürün özellikleri
    Transistor PolarityP Channel
    Drain Source Voltage Vds-60V
    On Resistance Rds(on)0.3ohm
    Rds(on) Test Voltage Vgs-10V
    Threshold Voltage Vgs2.6V
    Power Dissipation Pd3W
    Transistor Case StyleSOT-223
    No. of Pins4Pins
    Operating Temperature Max150°C
    Product Range-
    Automotive Qualification Standard-
    MSLMSL 1 - Unlimited
    SVHCLead (27-Jun-2018)
    Current Temperature25°C
    External Depth7.3mm
    External Length / Height1.7mm
    External Width6.7mm
    Full Power Rating Temperature25°C
    No. of Transistors1
    Operating Temperature Min-55°C
    Operating Temperature Range-55°C to +150°C
    Tape Width12mm
    Voltage Vgs Rds on Measurement10V
    Voltage Vgs th Max-4V
    0.0 0
    Kendi görüşünü yaz Kapat
    *
    *
    • Kötü
    • Mükemmel
    *
    *
    *
    *
    MOSFET, P CH,-60V,-2.5A, SOT-223; Transistor Polarity:P Channel; Continuous Drain Current Id:-2.5A; Drain Source Voltage Vds:-60V; On Resistance Rds(on):0.3ohm; Rds(on) Test Voltage Vgs:-10V; Threshold Voltage Vgs:2.6V; Power Dissipation Pd:3W; Transistor Case Style:SOT-223; No. of Pins:4Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:Lead (27-Jun-2018); Current Temperature:25°C; External Depth:7.3mm; External Length / Height:1.7mm; External Width:6.7mm; Full Power Rating Temperature:25°C; No. of Transistors:1; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +150°C; Pulse Current Idm:-15A; SMD Marking:2955; Tape Width:12mm; Voltage Vgs Max:-2.6V; Voltage Vgs Rds on Measurement:10V; Voltage Vgs th Max:-4V
