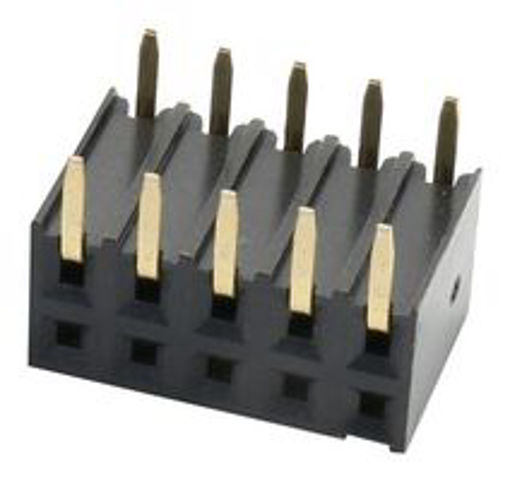

    2214BR-10G - Socket, Pcb, 2 Row, R/A, 10Way

    Manufacturer: Multicomp Pro
    Order Code: 1593499
    Manufacturer part number: 2214BR-10G
    Technical Datasheet: 2214BR-10G Datasheet
    Availability: Out of stock
    Legislation and Environmental
    Weight (KG): 0.0012
    Tariff No: 85366930
    0.0 0
    Write your own review Close
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Socket, Pcb, 2 Row, R/A, 10Way; Pitch Spacing:2.54Mm; No. Of Contacts:10Contacts; Gender:Receptacle; Product Range:2214Br Series; Contact Termination Type:Through Hole; No. Of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact Material:Phosphor Bronze; Svhc:No Svhc (15-Jan-2019); Contact Resistance:20Mohm; Contact Termination:Solder; Current Rating:3A; Flammability Rating:Ul94v-0; Insulation Resistance:1000Mohm; Lead Spacing:2.54Mm; Operating Temperature Max:105°C; Operating Temperature Min:-40°C; Row Pitch:2.54Mm; Termination Method:Solder; Voltage Rating Vac:250V; Withstand Voltage:600V
