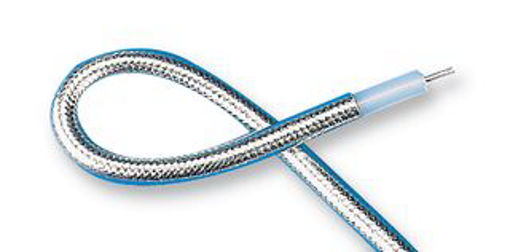

ECR 141-50 - Cable, Coax, Quickform 141, 100M

Cable, Coax, Quickform 141, 100M; Coaxial Cable Type:-; Wire Gauge:-; Conductor Area Csa:-; Impedance:50Ohm; Reel Length (Imperial):328Ft; Reel Length (Metric):100M; Jacket Colour:Silver; Jacket Material:Ptfe; Conductor Material:Copper Coated Steel; No. Of Max Strands X Strand Size:Solid; External Diameter:4Mm; Product Range:-; Attenuation @ 1Ghz:40.2Db; Attenuation @ 200Mhz:16.8Db; Attenuation @ 2Ghz:60.1Db; Attenuation @ 400Mhz:24.3Db; Attenuation @ 50Mhz:8.2Db; Attenuation @ 800Mhz:35.4Db; Capacitance Per Metre:97Pf/M; Conductor Make-Up:1/0.94Mm; Conductor Plating:Silver; Core Diameter:0.94Mm; Dielectric Material:Ptfe; Impedance Max:52Ohm; Impedance Min:48Ohm; Outer Diameter:4Mm; Screen Type Primary:Tin Soaked Copper
