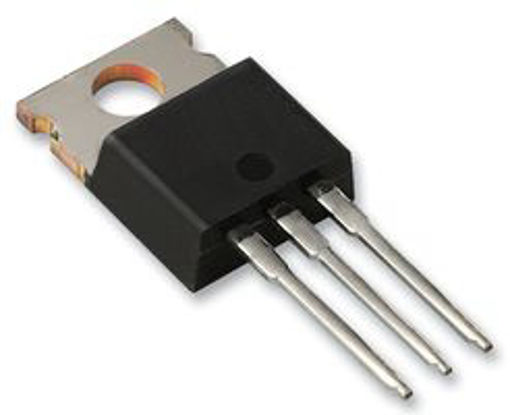

FDP33N25 - Mosfet, N, To-220

Mosfet, N, To-220; Transistor Polarity:N Channel; Continuous Drain Current Id:33A; Drain Source Voltage Vds:250V; On Resistance Rds(On):0.094Ohm; Rds(On) Test Voltage Vgs:10V; Threshold Voltage Vgs:5V; Power Dissipation Pd:235W; Transistor Case Style:To-220; No. Of Pins:3Pins; Operating Temperature Max:150°C; Product Range:-; Automotive Qualification Standard:-; Msl:-; Svhc:Lead (27-Jun-2018); Alternate Case Style:Sot-78B; Capacitance Ciss Typ:1640Pf; Current Id Max:33A; Junction Temperature Tj Max:150°C; Junction Temperature Tj Min:-55°C; Junction To Case Thermal Resistance A:0.53°C/W; On State Resistance Max:94Mohm; On State Resistance Typ:77Mohm; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C To +150°C; Pin Configuration:G(1),D(2)S(3); Pulse Current Idm:132A; Termination Type:Through Hole; Voltage Vds Typ:250V; Voltage Vgs Max:30V; Voltage Vgs Rds On Measurement:10V; Voltage Vgs Th Max:5V; Voltage Vgs Th Min:3V
