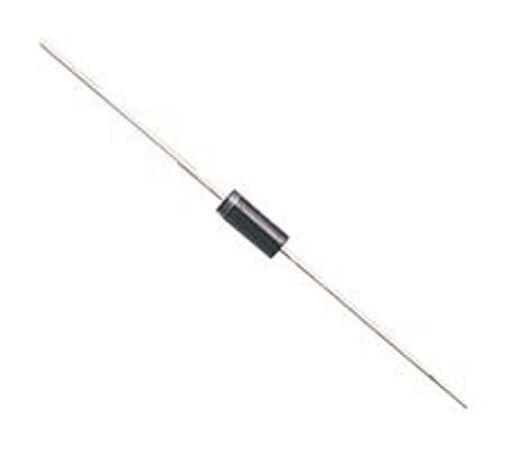

P6KE200CA - Diode, Tvs, 200V, 600W

Diode, Tvs, 200V, 600W; Product Range:P6ke Series; Tvs Polarity:Bidirectional; Reverse Stand-Off Voltage Vrwm:171V; Clamping Voltage Vc Max:274V; Diode Case Style:Do-15; No. Of Pins:2Pins; Breakdown Voltage Min:190V; Breakdown Voltage Max:210V; Peak Pulse Power Dissipation:600W; Automotive Qualification Standard:-; Svhc:Lead (27-Jun-2018); Alternate Case Style:Do-204Ac; Body Diameter:3.56Mm; Breakdown Voltage:200V; Breakdown Voltage Range:190V To 210V; Breakover Voltage Min:190V; Diode Type:Bidirectional Tvs; External Length / Height:7.62Mm; Leakage Current:5Μa; Operating Temperature Max:175°C; Operating Temperature Min:-65°C; Operating Temperature Range:-65°C To +175°C; Peak Pulse Current Ippm:2.2A; Power Dissipation Pd:5W; Reverse Leakage Current Max:5Μa; Stand-Off Voltage:171V; Termination Type:Axial Leaded; Test Current:1Ma; Uni / Bi Directional Polarity:Bidirectional
