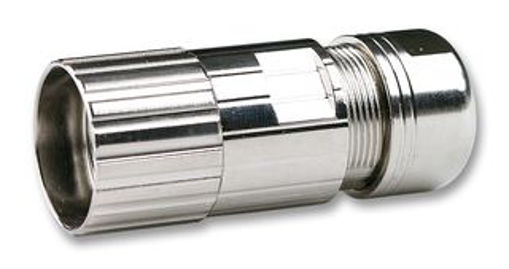

72040010 - PLUG, FREE, SCREW
Sipariş Kodu: 9902830
Üretici parti numarası: 72040010
Kullanılabilirlik: Stoklar tükendi
Mevzuat ve Çevre
Menşe Ülke: DE
RoHS Uyumlu: Y10
SVHC: 0
Ağırlık (KG): 0,0920
Gümrük Tarife No: 85366990
Ürün özellikleri
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | - |
| Circular Contact Type | Crimp Pin |
| Coupling Style | - |
| Connector Body Material | - |
| Connector Body Plating | - |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| SVHC | No SVHC (15-Jan-2019) |
| Body Diameter | 30mm |
| Cable Diameter Max | 10.5mm |
| Cable Diameter Min | 5.5mm |
| Connector Mounting | Cable Mount |
| Connector Type | Circular Industrial |
| Contact Gender | Pin |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | Crimp / Solder |
| Contact Termination Type | Crimp / Solder |
| Current Rating | 9A |
| Current per Contact Max | 9A |
| Degree of Pollution | 3 |
| Flammability Rating | UL94V-0 |
| Gender | Plug |
| IP / NEMA Rating | IP67 |
| Length | 59mm |
| No. of Mating Cycles | 500 |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Voltage Rating VAC | 160V |
| Working Voltage | 32V |
PLUG, FREE, SCREW; Product Range:Circon R2.5 Series; Circular Connector Shell Style:Cable Mount Plug; No. of Contacts:-; Circular Contact Type:Crimp Pin; Coupling Style:-; Connector Body Material:-; Connector Body Plating:-; Contact Material:Copper Alloy; Contact Plating:Gold; SVHC:No SVHC (15-Jan-2019); Body Diameter:30mm; Cable Diameter Max:10.5mm; Cable Diameter Min:5.5mm; Connector Mounting:Cable Mount; Connector Type:Circular Industrial; Contact Gender:Pin; Contact Plating:Gold Plated Contacts; Contact Termination:Crimp / Solder; Contact Termination Type:Crimp / Solder; Current Rating:9A; Current per Contact Max:9A; Degree of Pollution:3; Flammability Rating:UL94V-0; Gasket Material:Viton/H-NBR; Gender:Plug; IP / NEMA Rating:IP67; Length:59mm; No. of Mating Cycles:500; Operating Temperature Max:125°C; Operating Temperature Min:-40°C; Proof Voltage:160V; Voltage Rating VAC:160V; Working Voltage:32V
