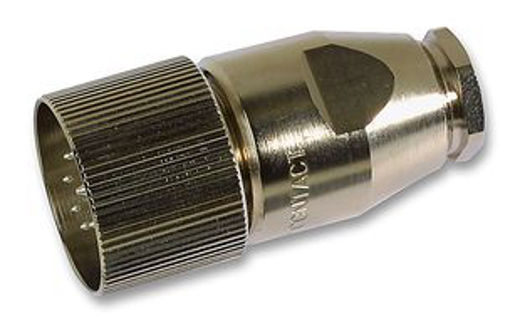

8736+00022020 - PLUG, CABLE MOUNT, 8+1WAY
Sipariş Kodu: 9905731
Üretici parti numarası: 8736+00022020
Kullanılabilirlik: Stoklar tükendi
Mevzuat ve Çevre
Menşe Ülke: DE
RoHS Uyumlu: YES
SVHC: 0
Ağırlık (KG): 0,0720
Gümrük Tarife No: 85366990
Ürün özellikleri
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 9Contacts |
| Circular Contact Type | - |
| Coupling Style | - |
| Connector Body Material | Copper Alloy Body |
| Connector Body Plating | - |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| SVHC | No SVHC (15-Jan-2019) |
| Body Plating | Nickel |
| Cable Diameter Max | 10mm |
| Cable Diameter Min | 6mm |
| Colour | Nickel |
| Connector Mounting | Cable Mount |
| Connector Type | Circular Industrial |
| Contact Gender | Pin |
| Contact Plating | Silver Plated Contacts |
| Contact Resistance | 3mohm |
| Current Rating | 7.5A |
| Flammability Rating | UL94V-0 |
| Gender | Plug |
| IP / NEMA Rating | IP65 |
| Insulation Resistance | 10Mohm |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Thread Size | PG9 |
| Voltage Rating VAC | 380V |
| Withstand Voltage | 1.5kV |
| Working Voltage | 24V |
PLUG, CABLE MOUNT, 8+1WAY; Product Range:Circon R2.5 Series; Circular Connector Shell Style:Cable Mount Plug; No. of Contacts:9Contacts; Circular Contact Type:-; Coupling Style:-; Connector Body Material:Copper Alloy Body; Connector Body Plating:-; Contact Material:Copper Alloy; Contact Plating:Silver; SVHC:No SVHC (15-Jan-2019); Body Plating:Nickel; Cable Diameter Max:10mm; Cable Diameter Min:6mm; Colour:Nickel; Connector Mounting:Cable Mount; Connector Type:Circular Industrial; Contact Gender:Pin; Contact Plating:Silver Plated Contacts; Contact Resistance:3mohm; Current Rating:7.5A; Flammability Rating:UL94V-0; Gender:Plug; IP / NEMA Rating:IP65; Insulation Resistance:10Mohm; Operating Temperature Max:125°C; Operating Temperature Min:-40°C; Thread Size:PG9; Voltage Rating VAC:380V; Withstand Voltage:1.5kV; Working Voltage:24V
