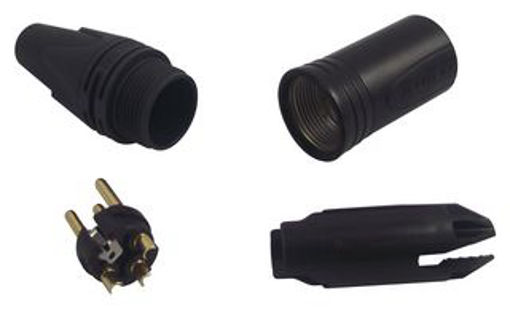

NC3MXX-B - PLUG, XLR, FREE, BLACK, 3WAY

Manufacturer: Neutrik

Order Code: 9991816

Manufacturer part number: NC3MXX-B

Technical Datasheet:

NC3MXX-B Datasheet

Availability: 5387 in stock

U.K. Stock

UK stock products are delivered within 7-10 work days.

€5.68 + VAT

Price for :Each

Qty:

i h

PRICE BREAKS - The more you buy, the more you save

Quantity

Price

€5.68

10+

€4.76

100+

€4.67

250+

€4.57

500+

€4.47

1000+

€4.38

Legislation and Environmental

Country of Origin: LI

RoHS Compliant: Y10

SVHC: 0

Weight (KG): 0.0318

Tariff No: 85366990

Specifications
Reviews
Contact Us

Products specifications

No. of Contacts	3Contacts
Gender	Plug
Connector Mounting	Cable Mount
Contact Plating	Gold Plated Contacts
Connector Body Material	Metal Body
Product Range	XX Series
SVHC	No SVHC (27-Jun-2018)
Cable Diameter Max	8mm
Cable Diameter Min	3.5mm
Colour	Black
Connector Colour	Black
Contact Resistance	3mohm
Contact Termination	Solder
Current Rating	16A
Flammability Rating	UL94-HB
Insertion Force	20N
Insulation Resistance	2Gohm
No. of Mating Cycles	1000
Operating Temperature Max	+80°C
Operating Temperature Min	-30°C
Standard	IEC 61076-2-103
Termination Method	Solder
Wire Area Size Max	2.5mm²
Wire Size AWG Max	14AWG
XLR Capacitance	4pF

Your name *

Your email *

Subject: *

Enquiry *

PLUG, XLR, FREE, BLACK, 3WAY; No. of Contacts:3Contacts; Gender:Plug; Connector Mounting:Cable Mount; Contact Plating:Gold Plated Contacts; Connector Body Material:Metal Body; Product Range:XX Series; SVHC:No SVHC (27-Jun-2018); Cable Diameter Max:8mm; Cable Diameter Min:3.5mm; Colour:Black; Connector Colour:Black; Contact Resistance:3mohm; Contact Termination:Solder; Current Rating:16A; Dielectric Material:PA 6.6, 30% GR; Flammability Rating:UL94-HB; Insertion Force:20N; Insulation Resistance:2Gohm; Material:Zinc diecast, Ni plated; No. of Mating Cycles:1000; Operating Temperature Max:+80°C; Operating Temperature Min:-30°C; Proof Voltage:1500VDC; Standard:IEC 61076-2-103; Termination Method:Solder; Wire Area Size Max:2.5mm²; Wire Size AWG Max:14AWG; XLR Capacitance:4pF
