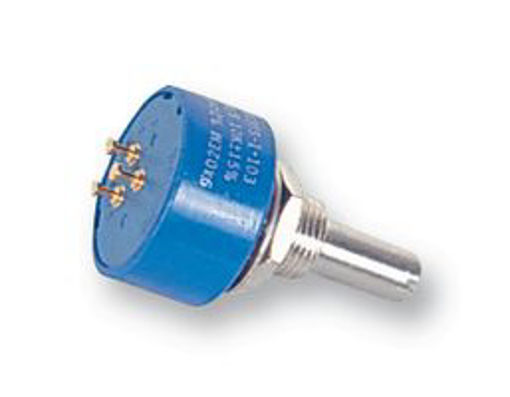

6639S-1-502 - POTENTIOMETER, LINEAR, 5K, 15%, 1 TURN
Sipariş Kodu: 9357726
Üretici parti numarası: 6639S-1-502
Kullanılabilirlik: 215 stoktaU.K. Stock
İngiltere stoklu ürünler 7-10 iş günü içerisinde teslim edilir.
Fiyatı :Adet
Çok Al, Az Öde, TASARRUF ET!
Mevzuat ve Çevre
Menşe Ülke: MX
RoHS Uyumlu: Y10
SVHC: 0
Ağırlık (KG): 0,0181
Gümrük Tarife No: 85334010
Ürün özellikleri
| Track Resistance | 5kohm |
| No. of Turns | 1Turns |
| Track Taper | Linear |
| Power Rating | 1W |
| Resistance Tolerance | ± 15% |
| Potentiometer Mounting | Panel |
| Shaft Diameter | 6.35mm |
| No. of Gangs | 1 |
| Adjustment Type | Screwdriver Slot |
| Shaft Length | 22.23mm |
| SVHC | Lead (15-Jan-2019) |
| Body Diameter | 22.2mm |
| Electrical Angular Rotation Tolerance + | 3° |
| Electrical Angular Rotation Tolerance - | 3° |
| External Length / Height | 11.3mm |
| Full Power Rating Temperature | 70°C |
| Insulation Resistance | 500Mohm |
| Linearity, + | 2% |
| Linearity, - | 2% |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -65°C |
| Operating Temperature Range | -65°C to +125°C |
| Resistance | 5kohm |
| Resistor Element Material | Conductive Plastic |
| Rotation Electrical Angle | 340° |
| Rotational Life Cycles | 10000000 |
| Temperature Coefficient | ± 500ppm/°C |
| Termination Type | Solder |
| Thread Size | 3/8" 32 UNEF |
| Tolerance + | 15% |
| Tolerance - | 15% |
| Voltage Rating | 300VAC |
| Voltage Rating VAC | 300V |
POTENTIOMETER, LINEAR, 5K, 15%, 1 TURN; Track Resistance:5kohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:1W; Resistance Tolerance:± 15%; Product Range:6639S Series; Potentiometer Mounting:Panel; Shaft Diameter:6.35mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:22.23mm; SVHC:Lead (15-Jan-2019); Body Diameter:22.2mm; Electrical Angular Rotation Tolerance +:3°; Electrical Angular Rotation Tolerance -:3°; External Length / Height:11.3mm; Full Power Rating Temperature:70°C; Insulation Resistance:500Mohm; Linearity, +:2%; Linearity, -:2%; Operating Temperature Max:125°C; Operating Temperature Min:-65°C; Operating Temperature Range:-65°C to +125°C; Resistance:5kohm; Resistor Element Material:Conductive Plastic; Rotation Electrical Angle:340°; Rotation Mechanical Angle:348°; Rotational Life Cycles:10000000; Temperature Coefficient:± 500ppm/°C; Termination Type:Solder; Thread Size:3/8" 32 UNEF; Tolerance +:15%; Tolerance -:15%; Voltage Rating:300VAC; Voltage Rating VAC:300V
