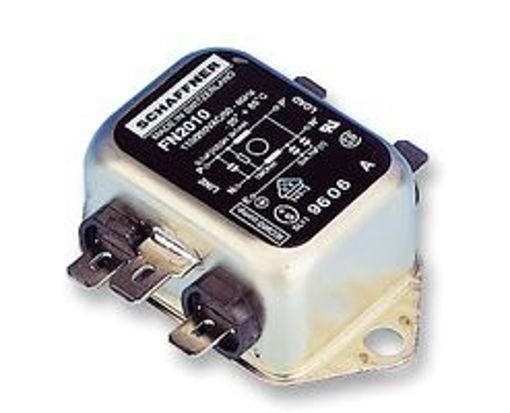

FN2010-6-06 - Filter, 6A, Chassis

Filter, 6A, Chassis; Current Rating:6A; Voltage Rating:250Vac; Filter Type:General Purpose; Filter Terminals:Quick Connect; Inductance Min:1Mh; Capacitance:0.1Μf; Leakage Current Max:400Μa; Product Range:Fn2000 Series; Svhc:No Svhc (15-Jan-2019); Approval Bodies:Csa, Sev, Vde; Bleed Resistor Resistance:1Mohm; Capacitance X:0.1Μf; Capacitance Y:4.7Nf; External Depth:64Mm; External Length / Height:24.3Mm; External Width:35Mm; Fixing Centres:54Mm; Height:24.3Mm; Inductance:1Mh; Leakage Current:0.4Ma; No. Of Phases:Single Phase; No. Of X Type Capacitors:1; No. Of Y Type Capacitors:2; Standard:Iec950; Supply Frequency Max:400Hz; Voltage Rating Vac:250V; Weight:65G
