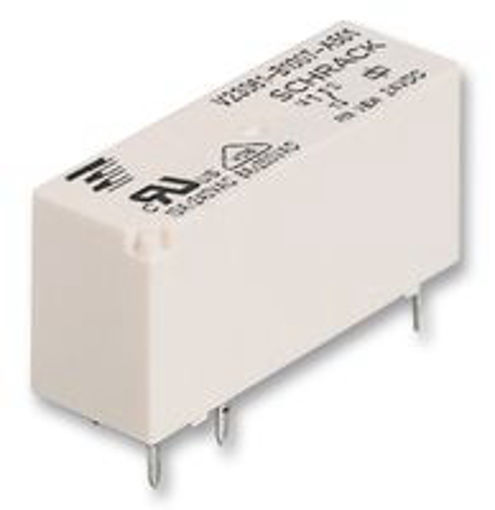

V23061-B1005-A601 - Relay, Spdt, 250Vac, 8A

Relay, Spdt, 250Vac, 8A; Contact Configuration:Spdt; Coil Voltage:12Vdc; Contact Current:8A; Product Range:Msr Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage Vac:250Vac; Relay Terminals:Solder; Contact Voltage Vdc:-; Contact Material:Silver Tin Oxide; Coil Resistance:652Ohm; Approval Bodies:Csa, Ul, Vde; Coil Operating Lower Percent Limit:70%; Coil Operating Upper Percent Limit:230%; Coil Voltage Vdc Nom:12V; Contact Current Ac Max:8A; Contact Current Dc Max:8A; Contact Current Max:8A; Contact Current Rating:8A; Contact Voltage Ac Max:250V; Contact Voltage Ac Nom:240V; Contact Voltage Dc Max:30V; Dc Coil Power:260Mw; External Depth:15Mm; External Height:30Mm; External Length / Height:30Mm; External Width:10Mm; Nom Operating Power:221Mw; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Operating Time:6Ms; Pcb Hole Diameter:1.3Mm; Power Rating:220W; Relay Type:Power - General Purpose; Release Time:2.5Ms
