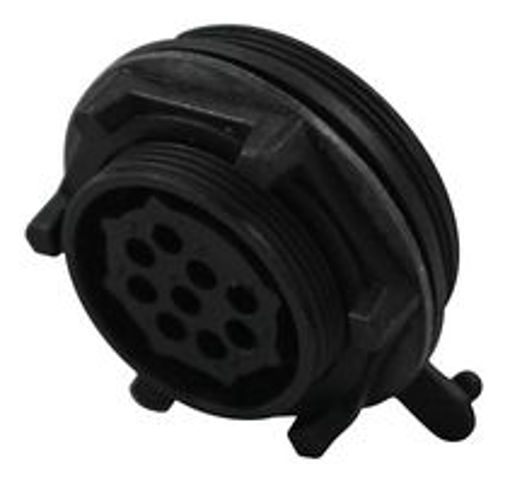

PX0727/S - SOCKET, SEALED PANEL, 9WAY

SOCKET, SEALED PANEL, 9WAY; Product Range:Buccaneer Standard Series; Circular Connector Shell Style:Panel Mount Receptacle; No. of Contacts:9Contacts; Circular Contact Type:Crimp Socket; Coupling Style:Threaded; Connector Body Material:Nylon (Polyamide), Glass Filled Body; Connector Body Plating:-; Contact Material:Copper Alloy; Contact Plating:Tin; SVHC:No SVHC (27-Jun-2018); Cable Diameter Max:8.1mm; Colour:Black; Connector Mounting:Panel Mount; Connector Type:Circular Industrial; Contact Gender:Socket; Contact Plating:Tin Plated Contacts; Contact Resistance Max:10mohm; Contact Termination:Crimp; Contact Termination Type:Crimp; Current Rating:5A; External Diameter:38.1mm; External Length / Height:28mm; Flammability Rating:UL94V-0; Gender:Receptacle; IP / NEMA Rating:IP68; Insulation Resistance:100Mohm; Moulding Material:Glass Filled Nylon; Operating Temperature Max:70°C; Operating Temperature Min:-20°C; Panel Thickness Max:6.4mm; Panel Thickness Min:0.8mm; Voltage Rating V DC:150V
