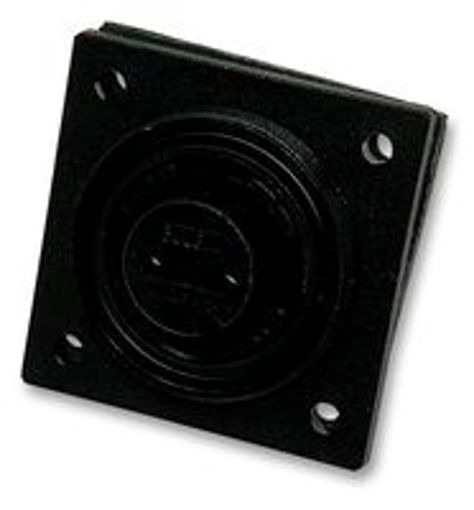

PX0769/S - SOCKET, LOW PROFILE, 9 POLE
Sipariş Kodu: 978050
Üretici parti numarası: PX0769/S
Kullanılabilirlik: Stoklar tükendi
Mevzuat ve Çevre
Menşe Ülke: GB
RoHS Uyumlu: Y10
SVHC: 0
Ağırlık (KG): 0,0260
Gümrük Tarife No: 85366990
Ürün özellikleri
| Circular Connector Shell Style | Panel Mount Receptacle |
| No. of Contacts | 9Contacts |
| Circular Contact Type | Crimp Socket |
| Coupling Style | Threaded |
| Connector Body Material | Nylon (Polyamide), Glass Filled Body |
| Connector Body Plating | - |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| SVHC | No SVHC (27-Jun-2018) |
| Colour | Black |
| Connector Mounting | Panel Mount |
| Connector Type | Circular Industrial |
| Contact Gender | Socket |
| Contact Plating | Tin Plated Contacts |
| Contact Resistance Max | 10mohm |
| Contact Termination | Crimp |
| Contact Termination Type | Crimp |
| Current Rating | 5A |
| Fixing Centres | 33.3mm |
| Flammability Rating | UL94V-0 |
| Gender | Receptacle |
| IP / NEMA Rating | IP68 |
| Insulation Resistance | 100Mohm |
| Operating Temperature Max | 70°C |
| Operating Temperature Min | -20°C |
| Voltage Rating V DC | 150V |
| Voltage Rating VAC | 150V |
| Wire Size AWG Max | 25AWG |
| Working Voltage | 150V |
SOCKET, LOW PROFILE, 9 POLE; Product Range:Buccaneer Standard Series; Circular Connector Shell Style:Panel Mount Receptacle; No. of Contacts:9Contacts; Circular Contact Type:Crimp Socket; Coupling Style:Threaded; Connector Body Material:Nylon (Polyamide), Glass Filled Body; Connector Body Plating:-; Contact Material:Copper Alloy; Contact Plating:Tin; SVHC:No SVHC (27-Jun-2018); Cable Diameter Max:8.1mm; Colour:Black; Connector Mounting:Panel Mount; Connector Type:Circular Industrial; Contact Gender:Socket; Contact Plating:Tin Plated Contacts; Contact Resistance Max:10mohm; Contact Termination:Crimp; Contact Termination Type:Crimp; Current Rating:5A; Fixing Centres:33.3mm; Flammability Rating:UL94V-0; Gender:Receptacle; IP / NEMA Rating:IP68; Insulation Resistance:100Mohm; Moulding Material:Glass Filled Nylon; Operating Temperature Max:70°C; Operating Temperature Min:-20°C; Panel Cutout Size:20.2 mm; Voltage Rating V DC:150V; Voltage Rating VAC:150V; Wire Size AWG Max:25AWG; Working Voltage:150V
