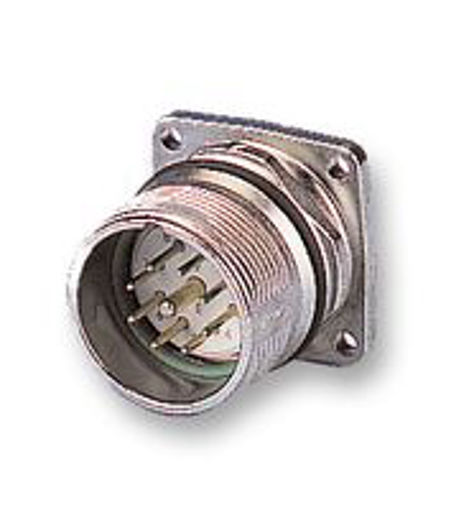

72000010 - SOCKET, PANEL
Sipariş Kodu: 9902872
Üretici parti numarası: 72000010
Kullanılabilirlik: Stoklar tükendi
Mevzuat ve Çevre
Menşe Ülke: DE
RoHS Uyumlu: Y10
SVHC: 0
Ağırlık (KG): 0,0300
Gümrük Tarife No: 85366990
Ürün özellikleri
| Circular Connector Shell Style | Panel Mount Receptacle |
| No. of Contacts | - |
| Circular Contact Type | Crimp Socket |
| Coupling Style | - |
| Connector Body Material | - |
| Connector Body Plating | - |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| SVHC | No SVHC (15-Jan-2019) |
| Body Diameter | 30mm |
| Connector Mounting | Panel Mount |
| Connector Type | Circular Industrial |
| Contact Gender | Socket |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | Crimp / Solder |
| Contact Termination Type | Crimp / Solder |
| Current Rating | 9A |
| External Length / Height | 25.7mm |
| External Width | 25.7mm |
| Flammability Rating | UL94V-0 |
| Gender | Receptacle |
| IP / NEMA Rating | IP67 |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Panel Cutout Diameter | 20mm |
| Voltage Rating VAC | 250V |
| Working Voltage | 160V |
SOCKET, PANEL; Product Range:Circon R2.5 Series; Circular Connector Shell Style:Panel Mount Receptacle; No. of Contacts:-; Circular Contact Type:Crimp Socket; Coupling Style:-; Connector Body Material:-; Connector Body Plating:-; Contact Material:Copper Alloy; Contact Plating:Gold; SVHC:No SVHC (15-Jan-2019); Body Diameter:30mm; Connector Mounting:Panel Mount; Connector Type:Circular Industrial; Contact Gender:Socket; Contact Plating:Gold Plated Contacts; Contact Termination:Crimp / Solder; Contact Termination Type:Crimp / Solder; Current Rating:9A; External Depth:24.6mm; External Length / Height:25.7mm; External Width:25.7mm; Flammability Rating:UL94V-0; Gasket Material:Viton/H-NBR; Gender:Receptacle; IP / NEMA Rating:IP67; Operating Temperature Max:125°C; Operating Temperature Min:-40°C; Panel Cutout Diameter:20mm; Voltage Rating VAC:250V; Working Voltage:160V
