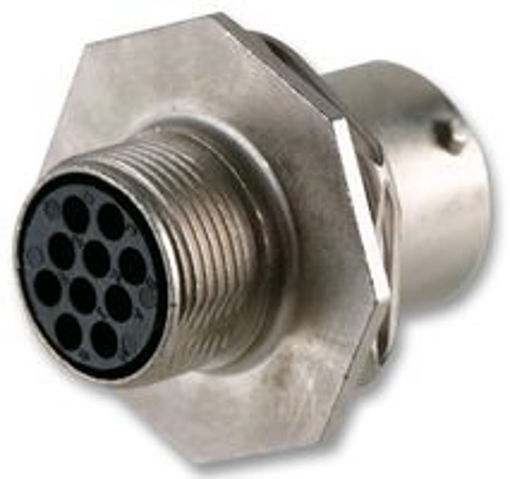

    UT07104PH6 - Pin Housing, Jam Nut, 4Way

    Manufacturer: Souriau
    Order Code: 1007188
    Manufacturer part number: UT07104PH6
    Technical Datasheet: UT07104PH6 Datasheet
    Availability: Out of stock
    Legislation and Environmental
    Country of Origin: FR
    RoHS Compliant: Y10
    SVHC: 0
    Weight (KG): 0.0210
    Tariff No: 85369010
    0.0 0
    Write your own review Close
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Pin Housing, Jam Nut, 4Way; Product Range:Trim Trio Ut0 Series; Circular Connector Shell Style:Jam Nut Receptacle; No. Of Contacts:8Contacts; Circular Contact Type:Crimp Pin - Contacts Not Supplied; Coupling Style:Bayonet; Connector Body Material:Zinc Alloy Body; Connector Body Plating:Nickel; Contact Material:-; Contact Plating:-; Svhc:No Svhc (15-Jan-2019); Connector Mounting:Panel Mount; Connector Shell Size:10; Connector Type:Circular Industrial; Contact Gender:Pin; Flammability Rating:Ul94v-0; Gender:Receptacle; Ip / Nema Rating:Ip67, Ip68, Ip69k; Insert Arrangement:10-4; Insulation Resistance:5000Mohm; No. Of Mating Cycles:500; No. Of Positions:4Ways; Operating Temperature Max:+105°C; Operating Temperature Min:-40°C; Test Voltage:2000V; Voltage Rating Vac:750V
