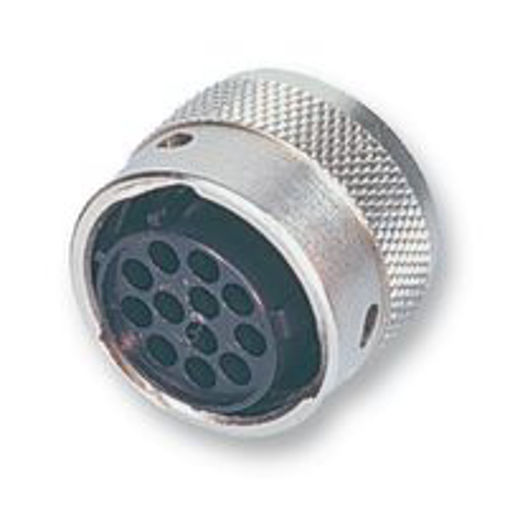

    UT0W62255SH - Socket Housing, Free, 55Way

    Manufacturer: Souriau
    Order Code: 1007256
    Manufacturer part number: UT0W62255SH
    Technical Datasheet: UT0W62255SH Datasheet
    Availability: Out of stock
    Legislation and Environmental
    Country of Origin: FR
    RoHS Compliant: Y10
    SVHC: 0
    Weight (KG): 0.0484
    Tariff No: 85369010
    0.0 0
    Write your own review Close
    • Bad
    • Excellent
    Socket Housing, Free, 55Way; Product Range:Trim Trio Ut0w Series; Circular Connector Shell Style:Straight Plug; No. Of Contacts:55Contacts; Circular Contact Type:Crimp Socket - Contacts Not Supplied; Coupling Style:Bayonet; Connector Body Material:Zinc Alloy Body; Connector Body Plating:Nickel; Contact Material:-; Contact Plating:-; Svhc:No Svhc (15-Jan-2019); Connector Mounting:Cable Mount; Connector Shell Size:22; Connector Type:Circular Industrial; Contact Gender:Socket; Flammability Rating:Ul94v-0; Gender:Plug; Ip / Nema Rating:Ip67, Ip68, Ip69k; Insert Arrangement:22-55; Insulation Resistance:5000Mohm; No. Of Mating Cycles:500; No. Of Positions:55Ways; Operating Temperature Max:+105°C; Operating Temperature Min:-40°C; Test Voltage:1500V; Voltage Rating Vac:750V
