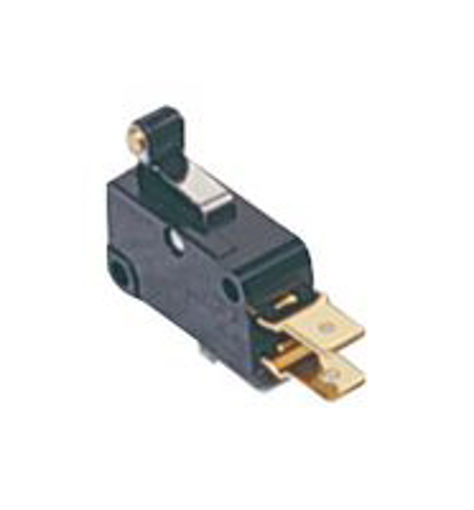

    V-155-1C5 - SWITCH, SHORT ROLLER, SPDT, 15A, 250VAC

    Üretici firma: Omron
    Sipariş Kodu: 9901647
    Üretici parti numarası: V-155-1C5
    Teknik Bilgi: V-155-1C5 Datasheet
    Kullanılabilirlik: Stoklar tükendi
    Mevzuat ve Çevre
    Menşe Ülke: JP
    RoHS Uyumlu: Y10
    SVHC: 0
    Ağırlık (KG): 0,0080
    Gümrük Tarife No: 85365007
    Ürün özellikleri
    Microswitch TypeSnap Action
    Microswitch ActuatorShort Roller Lever
    Contact ConfigurationSPDT
    Switch TerminalsQuick Connect
    Contact Current Max15A
    Contact Voltage DC Nom250VDC
    Product Range-
    Contact Voltage AC Nom250VAC
    Contact Current AC15A
    Differential Travel Max0.6mm
    External Depth27.9mm
    External Length / Height15.9mm
    External Width10.3mm
    No. of Electrical Operations25000
    Operating Temperature Max80°C
    Operating Temperature Min-25°C
    Pre-travel1.6mm
    Tab Blade Thickness0.8mm
    Tab Width6.3mm
    0.0 0
    Kendi görüşünü yaz Kapat
    *
    *
    • Kötü
    • Mükemmel
    *
    *
    *
    *
    SWITCH, SHORT ROLLER, SPDT, 15A, 250VAC; Microswitch Type:Snap Action; Microswitch Actuator:Short Roller Lever; Contact Configuration:SPDT; Switch Terminals:Quick Connect; Contact Current Max:15A; Contact Voltage DC Nom:250VDC; Product Range:-; Contact Voltage AC Nom:250VAC; Operating Force Max:240gf; Actuator Type:Microswitch; Contact Current AC:15A; Differential Travel Max:0.6mm; External Depth:27.9mm; External Length / Height:15.9mm; External Width:10.3mm; Fixing Centres LxW:22.2 x 10.3mm; No. of Electrical Operations:25000; No. of Mechanical Operations:500000; Operating Force:2.35N; Operating Temperature Max:80°C; Operating Temperature Min:-25°C; Over Travel Min:0.8mm; Pre-travel:1.6mm; Return Force Min:0.49N; Tab Blade Thickness:0.8mm; Tab Width:6.3mm
