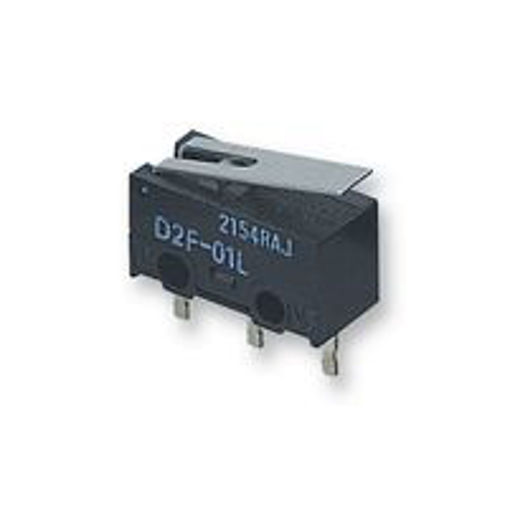

    D2F-01L - SWITCH, LEVER, SPDT, 0.1A, 30VDC

    Üretici firma: Omron
    Sipariş Kodu: 9901957
    Üretici parti numarası: D2F-01L
    Teknik Bilgi: D2F-01L Datasheet
    Kullanılabilirlik: Stoklar tükendi
    Mevzuat ve Çevre
    Menşe Ülke: JP
    RoHS Uyumlu: YES
    SVHC: 0
    Ağırlık (KG): 0,0007
    Gümrük Tarife No: 85365007
    Ürün özellikleri
    Microswitch TypeSnap Action
    Microswitch ActuatorLever
    Contact ConfigurationSPDT
    Switch TerminalsThrough Hole
    Contact Current Max100mA
    Contact Voltage DC Nom30VDC
    Product RangeD2F Series
    Contact Voltage AC Nom-
    Actuator TypeLever
    Approval BodiesCSA, UL
    Contact Current @ Contact Voltage DC Max0.1A
    Contact Resistance30mohm
    Differential Travel Max0.05mm
    External Depth12.8mm
    External Length / Height6.5mm
    External Width5.8mm
    Fixing Centres6.5mm
    Insulation Resistance100Mohm
    Insulation Resistance Voltage500V
    No. of Electrical Operations30000
    Operating Temperature Max85°C
    Operating Temperature Min-25°C
    Pre-travel0.5mm
    0.0 0
    Kendi görüşünü yaz Kapat
    *
    *
    • Kötü
    • Mükemmel
    *
    *
    *
    *
    SWITCH, LEVER, SPDT, 0.1A, 30VDC; Microswitch Type:Snap Action; Microswitch Actuator:Lever; Contact Configuration:SPDT; Switch Terminals:Through Hole; Contact Current Max:100mA; Contact Voltage DC Nom:30VDC; Product Range:D2F Series; Contact Voltage AC Nom:-; Operating Force Max:0.78N; Actuator Type:Lever; Approval Bodies:CSA, UL; Contact Current @ Contact Voltage DC Max:0.1A; Contact Resistance:30mohm; Differential Travel Max:0.05mm; External Depth:12.8mm; External Length / Height:6.5mm; External Width:5.8mm; Fixing Centres:6.5mm; Insulation Resistance:100Mohm; Insulation Resistance Voltage:500V; Lever Length:12.8mm; No. of Electrical Operations:30000; Operating Force:0.78N; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Over Travel Min:0.55mm; Pre-travel:0.5mm; Release Force:0.05N
