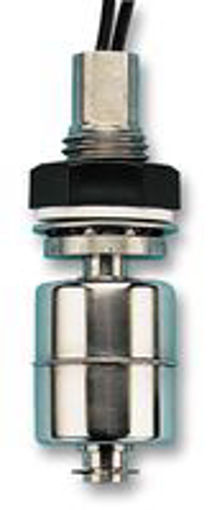

FVSS-01 - Float Switch, Vert

Float Switch, Vert; Operating Pressure Max:4Bar; Sensor Body Material:Stainless Steel; Output Current:-; Product Range:-; Body Material:Stainless Steel; Contact Configuration:Spst; Contact Current Ac Max:1A; Contact Voltage Ac Max:250V; Contact Voltage Dc Max:100Vdc; External Length / Height:78Mm; Fixing Hole Diameter:16.5Mm; Float Diameter:28Mm; Lead Length:0.5M; Material:Stainless Steel; Operating Pressure Range:0Bar To 4Bar; Operating Temperature Max:120°C; Operating Temperature Min:-30°C; Panel Thickness Max:10Mm; Power Rating:15W; Sensor Output:Spst-No / Spst-Nc; Specific Gravity Of Liquid Min:0.75; Switching Voltage Ac / Dc Max:250Vac
