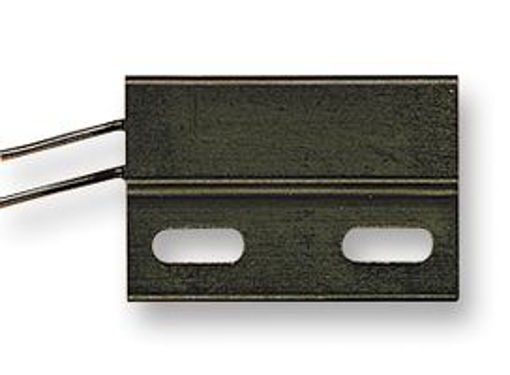

    PS2011 - Position Sensor

    Sipariş Kodu: 1006785
    Üretici parti numarası: PS2011
    Teknik Bilgi: PS2011 Datasheet
    Kullanılabilirlik: Stoklar tükendi
    Mevzuat ve Çevre
    Menşe Ülke: GB
    RoHS Uyumlu: TBA
    SVHC: 0
    Ağırlık (KG): 0,0190
    Gümrük Tarife No: 90318080
    0.0 0
    Kendi görüşünü yaz Kapat
    *
    *
    • Kötü
    • Mükemmel
    *
    *
    *
    *
    Position Sensor; Sensing Range Max:10Mm; Sensor Mounting:Cable; Operating Temperature Min:0°C; Operating Temperature Max:70°C; Supply Current:1A; Product Range:-; Approval Bodies:Ul; Contact Configuration:Spst-No; External Depth:6.4Mm; External Length / Height:19.5Mm; External Width:28.5Mm; Fixing Centres:21Mm; Lead Length:500Mm; Load Voltage Dc Max:100Vdc; Material:Nylon 6.6; Operating Temperature Range:0°C To +70°C; Rms Load Voltage Max:250Vac; Resistive Current Rating:1A; Sensing Distance Max:10Mm; Sensor Input:Magnetic; Supply Voltage Ac Max:250V; Switch Operation:Off-On; Switching Power Max:15W; Switching Voltage:250Vac; Termination Type:Wire Leaded
