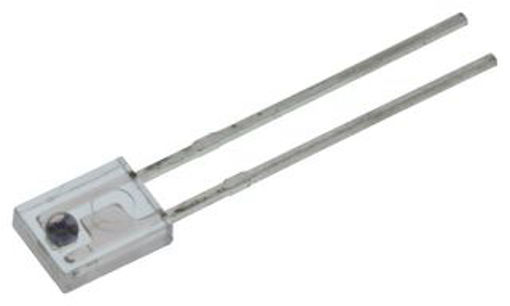

OP950 - Photodiode, Lateral

Photodiode, Lateral; No. Of Pins:2Pins; Diode Case Style:Radial Leaded; Wavelength Of Peak Sensitivity:935Nm; Angle Of Half Sensitivity ±:-; Dark Current:1000Pa; Operating Temperature Min:-40°C; Operating Temperature Max:100°C; Product Range:-; Automotive Qualification Standard:-; Msl:-; Svhc:No Svhc (27-Jun-2018); External Depth:2.28Mm; External Length / Height:5.71Mm; Fall Time Tf:5Ns; Forward Current If:18Μa; Forward Current If Max:18Μa; Forward Voltage Vf Max:1.2V; Lead Length:12.7Mm; Lead Spacing:2.54Mm; Operating Temperature Range:-40°C To +100°C; Piv Max:60V; Peak Wavelength:935Nm; Power Dissipation Pd:100Mw; Reverse Leakage Current Max:60Na; Rise Time:5Ns; Storage Temperature Max:100°C; Storage Temperature Min:-40°C; Wavelength Typ:935Nm
