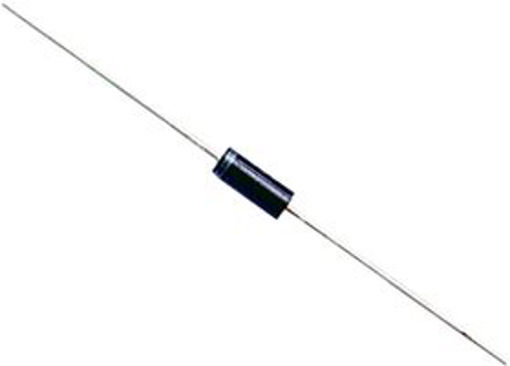

BY206GP-E3/54 - Diode, Small Signal, Do-41

Diode, Small Signal, Do-41; Repetitive Reverse Voltage Vrrm Max:350V; Forward Current If(Av):400Ma; Diode Configuration:Single; Forward Voltage Vf Max:1.5V; Reverse Recovery Time Trr Max:1Μs; Forward Surge Current Ifsm Max:15A; Operating Temperature Max:175°C; Diode Case Style:Do-41 (Do-204Al); No. Of Pins:2Pins; Product Range:By206 Series; Automotive Qualification Standard:-; Svhc:Lead (15-Jan-2019); Current If @ Vf:2A; Current Ifsm:15A; Device Marking:By206gp; External Diameter:2.7Mm; External Length / Height:5.2Mm; Junction Temperature Tj Max:175°C; Operating Temperature Min:-65°C; Operating Temperature Range:-65°C To +175°C; Termination Type:Axial Leaded
