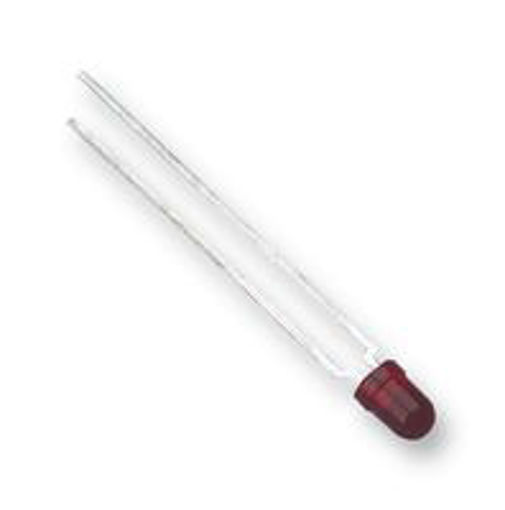

TLHR4205 - Led, 3Mm, He-Red

Led, 3Mm, He-Red; Led Colour:Red; Led Mounting:Through Hole; Led Case Size:T-1 (3Mm); Forward Current If:20Ma; Forward Voltage:2V; Wavelength Typ:635Nm; Luminous Intensity:15Mcd; Viewing Angle:22°; Lens Shape:Round; Product Range:-; Automotive Qualification Standard:-; Msl:-; Svhc:No Svhc (15-Jan-2019); Bulb Size:T-1 (3Mm); Current If Luminous Intensity:10Ma; Dominant Wavelength:625Nm; External Diameter:2.9Mm; External Length / Height:4.5Mm; Forward Current If Max:20Ma; Forward Voltage Vf Max:2V; Led / Lamp Size:3Mm / T-1; Led Type:Standard; Lead Cross-Section Depth:0.5Mm; Lead Cross-Section Width:0.5Mm; Lead Length:23Mm; Lead Spacing:2.54Mm; Luminous Intensity @ If Min:10Mcd; Luminous Intensity Typ:15Mcd; No. Of Pins:2Pins; Operating Temperature Max:100°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C To +100°C; Piv Max:6V; Peak Forward Current:30Ma; Peak Wavelength:635Nm; Voltage Vf Typ:2V
