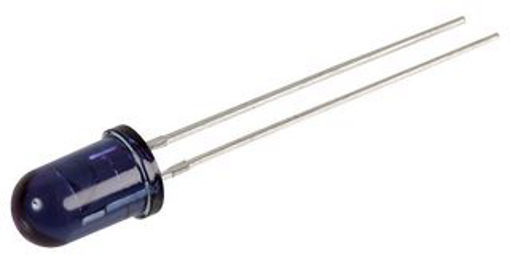

TSAL6100 - Infrared Emitter 940Nm T-1 3/4

Infrared Emitter 940Nm T-1 3/4; Peak Wavelength:940Nm; Angle Of Half Intensity:10°; Diode Case Style:T-1 3/4 (5Mm); Radiant Intensity (Ie):15Mw/Sr; Rise Time:800Ns; Fall Time Tf:800Ns; Forward Current If(Av):100Ma; Forward Voltage Vf Max:2.6V; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Automotive Qualification Standard:-; Product Range:-; Msl:-; Svhc:No Svhc (15-Jan-2019); Angle Of Half Sensitivity ±:10°; Current If @ Vf:100Ma; External Diameter:5.8Mm; External Length / Height:8.7Mm; Led / Lamp Size:5Mm; Lead Diameter:0.5Mm; Lead Length:25.7Mm; Lead Spacing:2.54Mm; No. Of Pins:2Pins; Operating Temperature Range:-40°C To +85°C; Piv Max:5V; Peak Forward Current:200Ma; Peak Pulse Current Ippm:1.5A; Radiant Intensity Max:400Mw/Sr; Radiant Intensity Min:80Mw/Sr; Radiometric Power:35Mw; Reverse Leakage Current Max:10Μa; Storage Temperature Max:100°C; Storage Temperature Min:-40°C; Viewing Angle:20°; Voltage Vf Typ:1.35V; Wavelength Typ:940Nm
