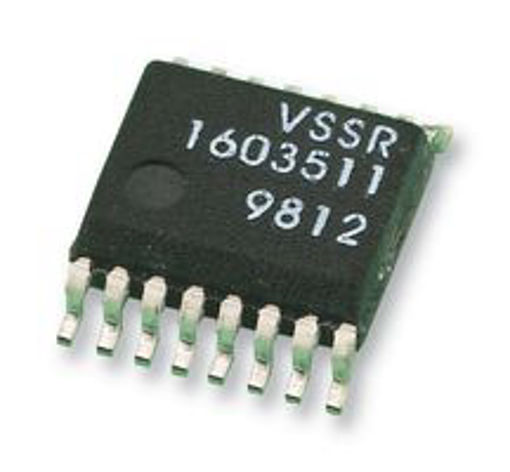

VSSR1601103JTF - Resistor Network, 10K

Resistor Network, 10K; Resistance:10Kohm; Product Range:Vssr Series; No. Of Elements:15Elements; Network Circuit Type:Bussed; Resistor Case Style:Ssop; No. Of Pins:16Pins; Voltage Rating:50V; Power Rating Per Element:100Mw; Resistance Tolerance:± 5%; Temperature Coefficient:± 100Ppm/°C; Automotive Qualification Standard:-; Rohs Phthalates Compliant:Yes; External Length / Height:4.98Mm; External Width:3.99Mm; Lead Spacing:0.635Mm; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C To +125°C; Power Rating:100Mw; Resistance R1:10Kohm; Resistor Element Material:Thin Film; Resistor Mounting:Surface Mount Device; Temperature Coeff Tracking +:10Ppm/°C; Temperature Coeff Tracking -:10Ppm/°C; Temperature Coeff. +:100Ppm/°C; Temperature Coeff. -:100Ppm/°C; Tolerance +:5%; Tolerance -:5%; Voltage Rating V Dc:50V
